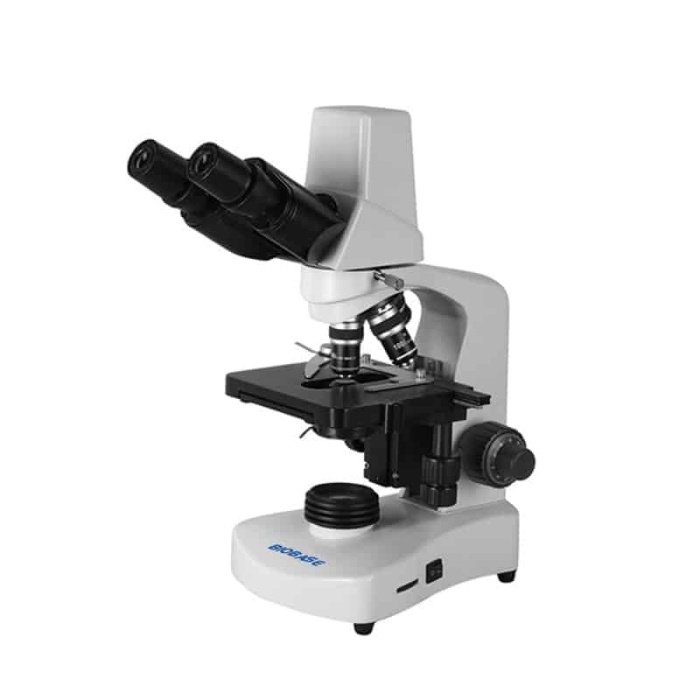

Biological Microscope-Build In Camera

Weight

N/A

Dimensions

N/A

size

BMB-117M

BMB-300M

Got a question? / Not sure of something? Chat an Expert via WhatsApp

Biological Microscope-Build In Camera, Clinical Analytical Instrument

Specification of Microscope

Model				BMB-117M	BMB-300M
Viewing Head	Compensation Free Binocular Head, Inclined at 30°, Interpupilary Distance 48-75mm			√
	Camera System	Valid Pixel	1280×1024(1.3M Pixel)	√
		Output Mode	USB2.0	√
		Operation System	WINDOWS7/8 2000 / XP/ VISTA	√
		Software	ScopeImage 9.0	√
		Range of Viewing Field	90%	√
	Built-in 3M pixel digital camera with Software ScopeImaage 9.0 Siedentopf binocular head,30°inclined,interpupillary distance 48-75mm				√
Eyepiece	WF10×/ 18			√	√
	P16×/ 11			√
	Extra wide filed eyepiece EW10×/ 20 with diopter adjustment				√
Objective	Achromatic Objective 4×,10×,40×,100×			√	√
Nosepiece	Backward Quadruple Nosepiece			√
	Quadruple Nosepiece				√
Stage	Double Layers Mechanical Stage 132×142mm,Moving range 75×40mm			√
	Double Layers Mechanical Stage 140×140mm Moving range 75×40mm				√
Condenser	Abbe NA1.20 with Iris Diaphragm & Fliter			√
	Abbe NA1.25 sliding-in centerable condenser				√
Focusing	Coaxial Coarse & Fine Adjustment System, Range 24mm, Fine Division 0.004mm			√
	Coaxial Coarse & Fine Adjustment System, Range 20mm,				√
Illumination	LED 3W,Brightness Adjustable			√
	Halogen Lamp 6V/ 20W,Brightness Adjustable			√
	220V or 110V/ 6V/ 20W Halogen Lamp, Brightness Adjustable.				√
Accessories	Phase Contrast Kit			√	√
	Dark-Field Attachment			√	√
	Polarization Attachment			√
Package Size	396262492(BMB-117M), 334X334X533(BMB-300M)			√	√
Gross Weight	7.5kg (BMB-117M), 12.5kg (BMB-300M)			√	√

Price range: R18,050.00 through R22,850.00

Weight	N/A
Dimensions	N/A
size	BMB-117M , BMB-300M

SKU: CP_16585 Categories: Laboratory Equipment, Laboratory Scientific Instruments, Medical Equipment

Description
Shipping & Delivery

Description

Model				BMB-117M	BMB-300M
Viewing Head	Compensation Free Binocular Head, Inclined at 30°, Interpupilary Distance 48-75mm			√
	Camera System	Valid Pixel	1280×1024(1.3M Pixel)	√
		Output Mode	USB2.0	√
		Operation System	WINDOWS7/8 2000 / XP/ VISTA	√
		Software	ScopeImage 9.0	√
		Range of Viewing Field	90%	√
	Built-in 3M pixel digital camera with Software ScopeImaage 9.0 Siedentopf binocular head,30°inclined,interpupillary distance 48-75mm				√
Eyepiece	WF10×/ 18			√	√
	P16×/ 11			√
	Extra wide filed eyepiece EW10×/ 20 with diopter adjustment				√
Objective	Achromatic Objective 4×,10×,40×,100×			√	√
Nosepiece	Backward Quadruple Nosepiece			√
	Quadruple Nosepiece				√
Stage	Double Layers Mechanical Stage 132×142mm,Moving range 75×40mm			√
	Double Layers Mechanical Stage 140×140mm Moving range 75×40mm				√
Condenser	Abbe NA1.20 with Iris Diaphragm & Fliter			√
	Abbe NA1.25 sliding-in centerable condenser				√
Focusing	Coaxial Coarse & Fine Adjustment System, Range 24mm, Fine Division 0.004mm			√
	Coaxial Coarse & Fine Adjustment System, Range 20mm,				√
Illumination	LED 3W,Brightness Adjustable			√
	Halogen Lamp 6V/ 20W,Brightness Adjustable			√
	220V or 110V/ 6V/ 20W Halogen Lamp, Brightness Adjustable.				√
Accessories	Phase Contrast Kit			√	√
	Dark-Field Attachment			√	√
	Polarization Attachment			√
Package Size	396262492(BMB-117M), 334X334X533(BMB-300M)			√	√
Gross Weight	7.5kg (BMB-117M), 12.5kg (BMB-300M)			√	√

Shipping & Delivery

LEAD TIME

Standard Delivery

Standard delivery is between 3 to 5 working days. This may differ from product to product. Lead time is likely to be indicated in the product description or you may phone our office to confirm.
